SPECS


Fork Specs
  • Headset: 1 x 32.5 x 26.4
  • Adapter: Available for 1 1/8 threadless headset
  • Steering Tube Length: 7 “long overall with threads extending 2” from the top
  • Longer steering tubes available upon request
  • Wheel Size: For use with wheels up to 26”
  • Tire Size: Will accept up to 26 x 2.55
  • Fork Leg Length: 15” long from the bottom bearing race to the drop outs where the front wheel axle is.
  • Drum Brake ready
  • Disc Brake: 160mm rotor recommended
  • Weight 7 pounds

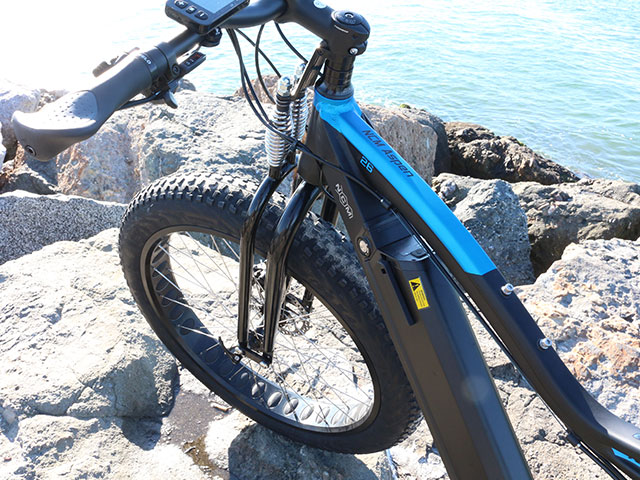

FB16 Spec Page
  • MEGA FORK SPECS
  • Available for 1 inch threaded or 1 ⅛ inch threadless steering tubes
  • Accepts 4 inch rims and tires widths up to 4.5 inches
  • Can be used with 26, 27, 28, and 29 inch wheels
  • Steering Tube Length: 9.4 inches (239mm)
  • Disc brake mount (uses a 160mm rotor)
  • Black with chrome springs
  • Axle mount width: 5.31 inches (135mm)
  • Width between fork legs: 5.51 inches (140mm)
  • Distance between fork crown and axle dropout: 16.93 inches (430mm)
  • Disc Brake: 160mm Rotor Recommended
  • Weight 7 pounds
×
